Front Wheel Bearing Hub for Isuzu D-Max TFS Mazda BT50 TFS40 TFS87 4WD

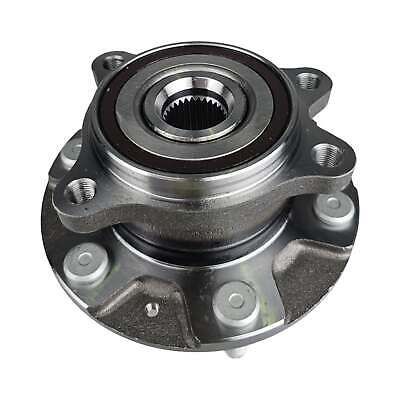

One Brand New Front Wheel Bearing Hub Assembly



Manufactured from premium steel, heavy-duty seals and OEM grade sensors. Precision engineered to OEM specifications for quiet smooth running operation. High grade Rubber used on ABS sensor wires (where applicable) for durability.



Vehicle Fitment Information For:

• Isuzu D-Max TFS TFS40 07/2020~/2024 4 Door Utility Diesel 3.0L 4JJ3-TCX  4WD
• Isuzu D-Max LS-U, SX Spacecab TFS TFS40 07/2020~/2024 4 Door Utility Diesel 3.0L 4JJ3-TCX 4WD
• Isuzu D-Max SX TFS TFS40 07/2020~/2024 2 Door Utility Diesel 3.0L, 4JJ3-TCX 4WD
• Isuzu D-Max TFS TFS87 10/2022~/2024 4 Door Utility Diesel 1.9L, RZ4E-TC 4WD
• Mazda BT50 XS B19C, B19D, B19E TFS87 11/2021~/2024 4 Door Wellside Diesel 1.9L, RZ4E-TC 4WD
• Mazda BT50 GT, XT, XTR, SP B30B, B30C TFS40 08/2020/2024 4 Door Wellside Diesel 3.0L, 4JJ3-TCX 4WD
• Mazda BT50 XT B30B, B30C TFS40 08/2020~/2024 4 Door Cab Chassis Diesel 3.0L 4JJ3-TCX 4WD
• Mazda BT50 XT Freestyle B30B, B30C TFS40 08/2020~/2024 4 Door Cab Chassis Diesel 3.0L 4JJ3-TCX 4WD
• Mazda BT50 XT B30B, B30C TFS40 08/2020~/2024 2 Door Cab Chassis Diesel 3.0L, 4JJ3-TCX 4WD

Specifications and Sizing

• Spline Quantity: 29 Teeth
• Wheel Flange Outer Diameter: 166mm
• 6 Stud PCD: M12 x 1.5 @139.7mm
• Wheel Pilot Diameter: 100mm
• Brake Pilot Diameter: 101mm
• Flange Offset: 56.5mm
• Hub Pilot Diameter: 95mm
• 4 Bolt Hub: M12 x 1.5
• 4 Bolt Hub, Centre to Centre D1: 50.5mm
• 4 Bolt Hub, Centre to Centre D2: 86.5mm
• Integrated ABS: Yes, 96 Teeth



What's Included

• 1 x Full Hub Assembly

Our precise machining practices ensure that we deliver a premium product that produces a smoother roll and longer life span. All our bearing kits, hubs and componentry come with a 12 month/20,000km warranty. They are backed up with a professional customer service team that has been in the industry for over 30 years. We are the wheel end experts. Our customer service team will be there to support you throughout the entire process. From questions you have pre-purchase to follow up support post purchase. Make the right decision and buy with a company that has a proven track record in service and supply.
