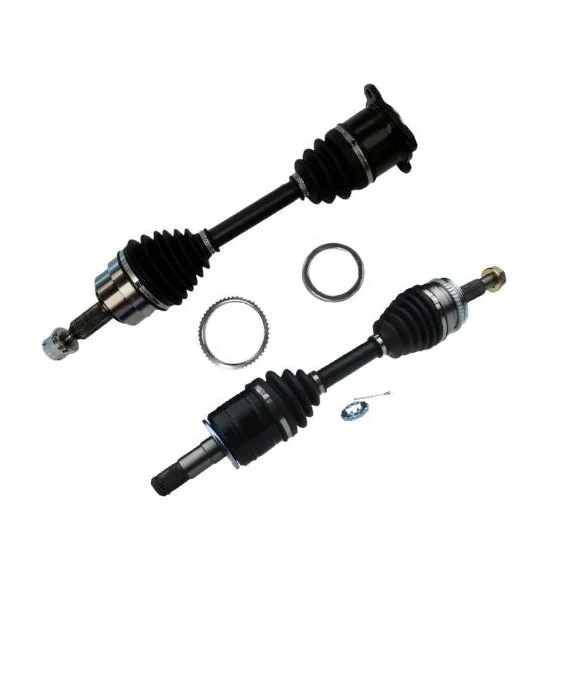

2X CV Axle Shafts For Mitsubishi Pajero NS NT Triton MN ML 2.5L 3.2L 3.5L 3.8L

CV Axle Drive Shafts - Both Sides
Automatic/Manual 4WD

***DOUBLE CHECK LENGTH MEASUREMENTS***

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment Information

• Mitsubishi Pajero NS NT NW V87W V97W 3.8L 4WD MT AT (10/2006 - 05/2013)
  Includes Sub-models R, X, GLX, VRX, Activ, Platinum Edition, Exceed


Sizing and Specifications

Right Side:

• Length (Compressed): 528mm
• Spline Count - Outer/Wheel Side: 30

• Flange Bolt Hole Diagonal: 115mm
• Flange Bolt Hole Across: 81mm
• ABS Ring Teeth: 50


Left Side:

• Diff Side Spline: 28T
• Wheel Side Spline: 30T
• ABS Ring: 47T
• Overall Length: 603mm
• Hub Nut: M24 x1.5

What's Included

• 2 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
